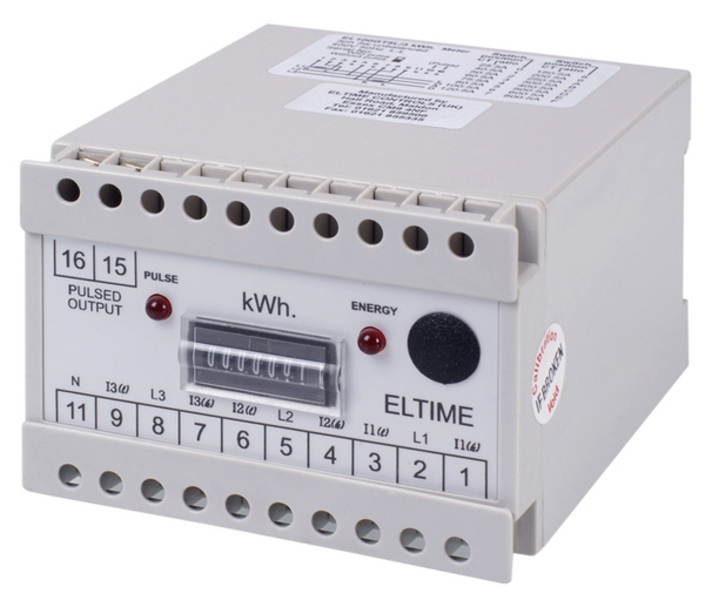

DIN Rail Mounting kWh Meters

DIN Rail Mounting kWh Meters

Product Features

  • Active energy (kWh) measurement
  • Single phase, 3 phase and DC versions
  • DIN rail mounting enclosure
  • Accuracy class 1 (1%)
  • Non-resettable
  • Pulsed output option
  • Fingerproof terminal cover included

Kilowatt hour meters are suitable for the monitoring of active energy (kWh) in all types of sub-metering applications. Models are available for single phase and three phase, balanced and unbalanced loads, as well as DC systems. The kWh meters are accurate to class 1 to IEC1036 and AC models have a user selectable CT ratio through a rotary switch accessible from a removable cover on the meter. The meters are housed in a compact DIN rail mounting enclosure measuring only 100mm in width. All meters have an electromechanical counter eliminating the need for any auxiliary power supply on the AC models. All meters are available with an optional voltage free pulsed output for input to data loggers, PLC's, building management systems or computers.


Datasheet

Key Terms: EL100GT/1 - EL100GT/2 - EL100GT/3 - EL100GT/4 - EL100GT/5 - EL100GT/DC - Energy - kWh Meter - kWh - Pulsed Output
