Maximum Demand Meters

Maximum Demand Meters

Product Features

  • Indicates maximum demand over 15 minute period
  • DIN square 96mm size
  • Interchangeable scaleplates
  • Available combined with instantaneous Ammeter
  • Customer special scaleplates available

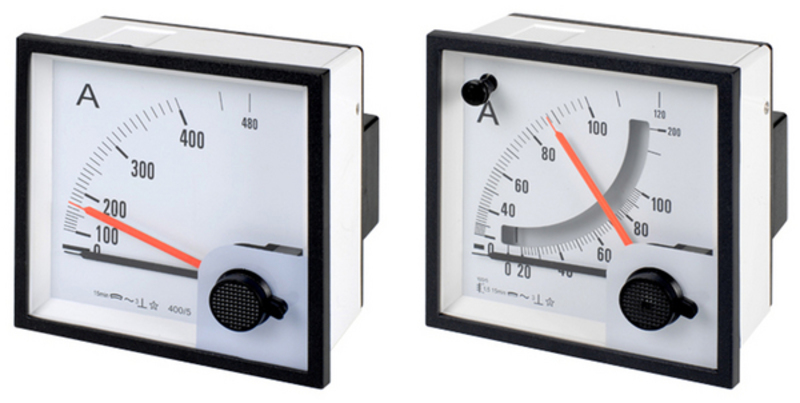

Maximum demand meters are suitable for measuring the maximum average load current over a 15 minute time period. Due to their inherent time lag the bimetallic movement remains unaffected by any momentary or short duration overloads. The mean maximum demand is therefore indicated by a red 'drag' pointer which can be set or reset to zero using the front control knob. The FE96MDIA version also includes an instantaneous reading ammeter for constant monitoring of current demand. The meters are available to operate from 5A secondary rated current transformers. Scales are non-linear and are calibrated from 20% to 120% of full scale current.


Datasheet

Key Terms: FE96MDI - FE96MDIA - Meter - Panel Meter - Maximum Demand - Ammeter - DIN Meter - MD
